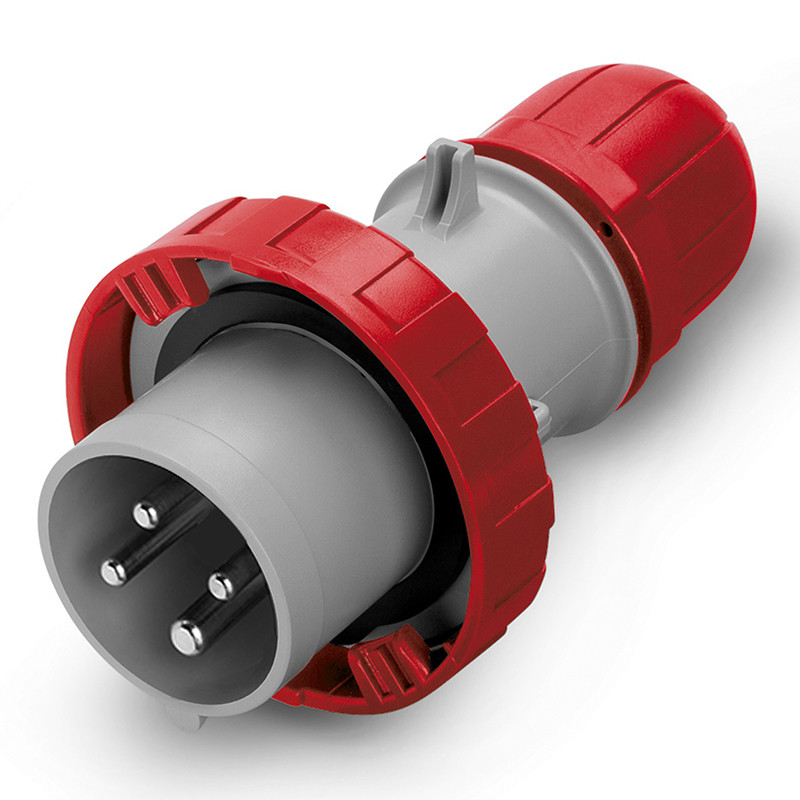

SCAME PLUG 32A 3P+E 6h 380-415V 60Hz 50Hz Screw terminals
€10.36 excl. VAT
The OPTIMA Series plug, designed for robust electrical performance, operates at a rated voltage of 380-415V and a rated current of 32A, ensuring reliable power delivery. It features a 3P+E configuration with a 6h hour position, suitable for both 50Hz and 60Hz working frequencies. The plug offers superior protection with an IP66/IP67/IP69 rating, safeguarding against dust and water ingress. Equipped with screw terminals, it ensures secure and efficient connections. Available in a straight outlet type, this plug is a dependable choice for demanding industrial environments.
EN 60309-2 (1999)
EN 60309-2/A1 (2007)
EN 60309-2/A2 (2012)
EN IEC 60309-1:2022
Low voltage direct. 2014/35/EU
Additional information
| Brand | SCAME |
|---|---|
| Commercial Series | OPTIMA Series |
| Rated current | 32A |
| Poles | 3P+E |
| Hour position | 6h |
| Rated voltage | 380-415V |
| Working frequency | 50Hz, 60Hz |
| Terminals | Screw terminals |
| Mounting version | PORTABLE |
| Colour | Red |
| Material | THERMOPLASTIC |
| Protection degree | Watertight |
| Protection degree IP | IP66/IP67/IP69 |
| Protection degree IK | IK08 |
| Types of available outlets | STRAIGHT |
| Contact material | CuZn (brass) |
| Surface treatment contacts | Nickel-plated |
| Cable entry | CABLE GLAND |
